STMicroelectronics STGWA30IH160DF2 1600V IH2 Series IGBT

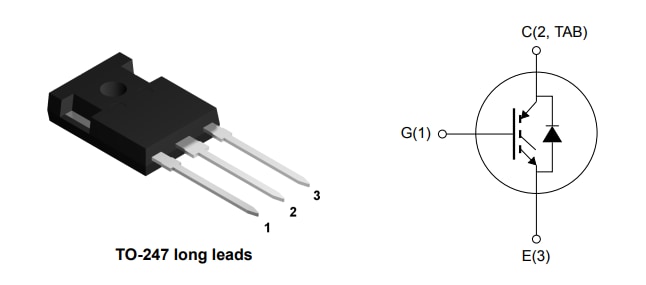

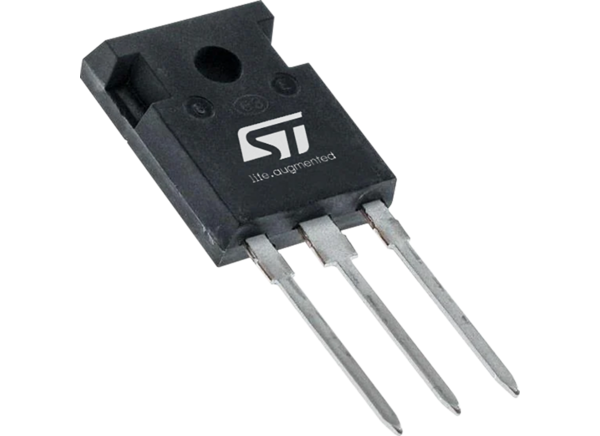

STMicroelectronics STGWA30IH160DF2 1600V IH2 series IGBT was created by implementing an advanced proprietary trench gate field-stop structure. The performance is optimized both in conduction and switching losses for soft commutation. A freewheeling diode with a low forward voltage drop is included. The STMicro STGWA30IH160DF2 is specifically designed to maximize efficiency for any resonant and soft-switching applications. The device is available in a TO-247 long lead package.
Features
- Designed for soft-commutation
- TJ = 175°C maximum junction temperature
- VCE(sat) = 1.77V (typ.) at IC = 30A
- Minimized tail current
- Tight parameter distribution
- Low thermal resistance
- Very low drop and soft recovery co-packaged diode
- Positive VCE(sat) temperature coefficient
- TO-247 long lead package
Applications
- Induction heating
- Microwave ovens
- Resonant converters
